Brand Name : FORUS
Model Number : ZP375
Certification : API 7K
Place of Origin : China
MOQ : 1 Set
Payment Terms : L/C, T/T, Western Union
Supply Ability : 300 Sets Per Month
Delivery Time : 20 days
Packaging Details : Wooden Box
Product Name : Rotary Table
Material : Carbon Steel
Standard : API
Industry : Oilfield
COC : Provide
Process : Casting
Drilling Rig Components API Standard ZP375 Drilling Rig Parts Rotary Table
Specification Parameter
Model | ZP70 | ZP125 | ZP175 | ZP205 | ZP275 | ZP375 |
Hole Dia. (mm) | 180 | 305 | 444.5 | 520.7 | 698.5 | 952.5 |
Max static Load (kN) | 600 | 1350 | 1350 | 3150 | 4500 | 5850 |
Max working torque (kN.m) | 8 | 12 | 13.7 | 22.6 | 27.5 | 32.4 |
max speed (r/min) | 300 | |||||
gear ratio | 2.94 | 3.5 | 3.58 | 3.62 | 3.67 | 3.56 |
central distance (mm) | 591 | 1118 | 1118 | 1353 | 1353 | 1353 |
central height | -- | 160 | 270 | 318 | 330 | 330 |
![]() |

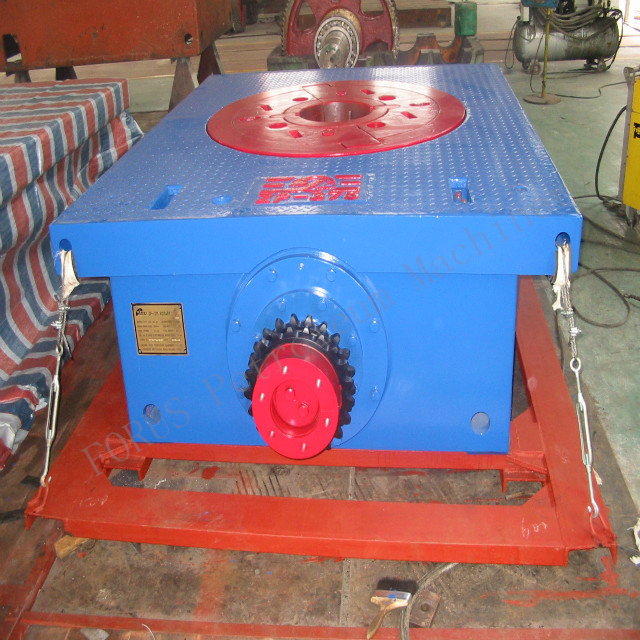

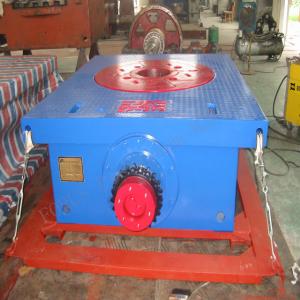

API Rotary Table Drilling Machine Images |
